Aten 4-Port USB 3.0 4K HDMI Dual Display KVMP Switch

Superior video quality
- 4096x2160 60Hz and 3840x2160 60Hz; 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates

Quad-Display
- Connect two CS1844 units for a quad-display setup controlled by one operator

Supports Video DynaSync
- Computer selection via pushbuttons, hotkeys, mouse, remote port selector, and RS-232 commands

- The ATEN CS1844 Dual Display KVMP Switch presents a valuable solution for desktop workstation with instant and effortless access to four HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users’ needs, the CS1844 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096x2160 60Hz), offering the most stunning and vivid visuals.

- In addition, with patented ATEN technology – Video DynaSync, which optimizes display resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop will not revert to their default configurations on the main display when switching between ports, providing a smooth and uninterrupted user experience.
Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.

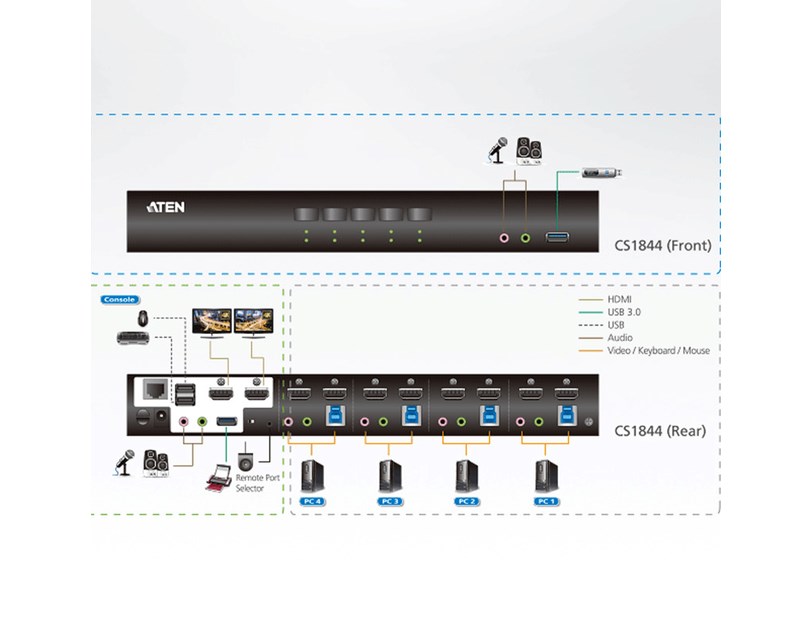

- For requirements of more displays to monitor, users can daisy-chain two CS1844 for up to four displays to multitask easily and process tremendous information. Besides, a remote port selector is available for quick and streamlined port selection apart from pushbuttons, hotkeys and mouse port switching.
As a feature-rich KVM switch, the CS1844 is especially suitable for users who need to perform multiple tasks smoothly at CGI work, graphic design, video post production, and CAD engineering.

Specifications
- Computer Connections: 4
- Port Selection: Hotkey, Pushbutton, Mouse, RS-232 Commands, Remote Port Selector

Connectors
- Console Ports

• 2 x USB Type A Female

• 2 x HDMI Female (Black)

• 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)

• 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
- KVM (Computer) Ports

• 4 x USB3.1 Gen1 Type B Female (Blue)

• 8 x HDMI Female (Black)

• 4 x 3.5mm Audio Jack Female (Green)

• 4 x 3.5mm Audio Jack Female (Pink)
- Daisy Chain Ports

• 1 x RJ-45 Female
- Remote Port Selector

• 1 x 2.5mm Audio Jack Female
- Power: 1 x DC Jack
- USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

Switches
- Selected: 5 x Pushbutton
- Station Selection: 1 x Slide Switch

LEDs
- On Line /Selected: 5 (Orange)
- USB Link: 5 (Green)
- Audio: 5 (Green)

Emulation
- Keyboard / Mouse: USB
- Video: Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz
- Scan Interval: 1-99 Seconds (Default: 5 sec.)
- Power Consumption: DC12V:4.42W:63BTU

Environmental
- Operating Temperature: 0-40°C
- Storage Temperature: -20-60°C
- Humidity: 0-80% RH, Non-condensing

Physical Properties
- Housing Metal
- Weight 1.57 kg ( 3.46 lb )
- Dimensions (L x W x H): 33.50 x 16.05 x 4.40 cm (13.19 x 6.32 x 1.73 in.)
*Note: For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
