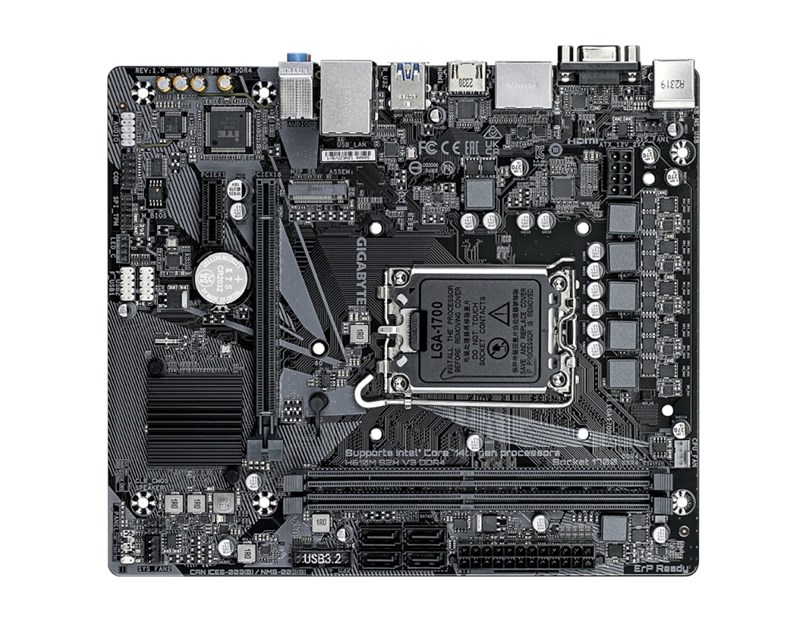

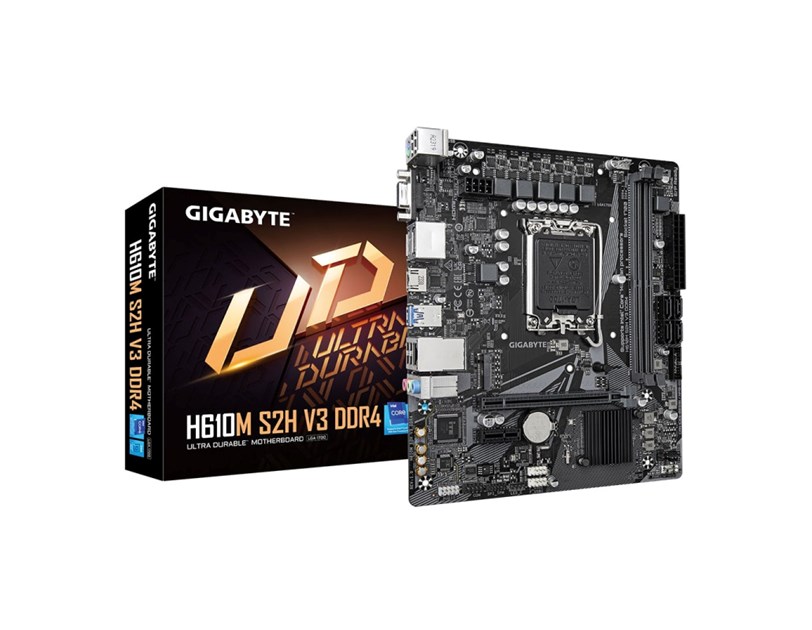

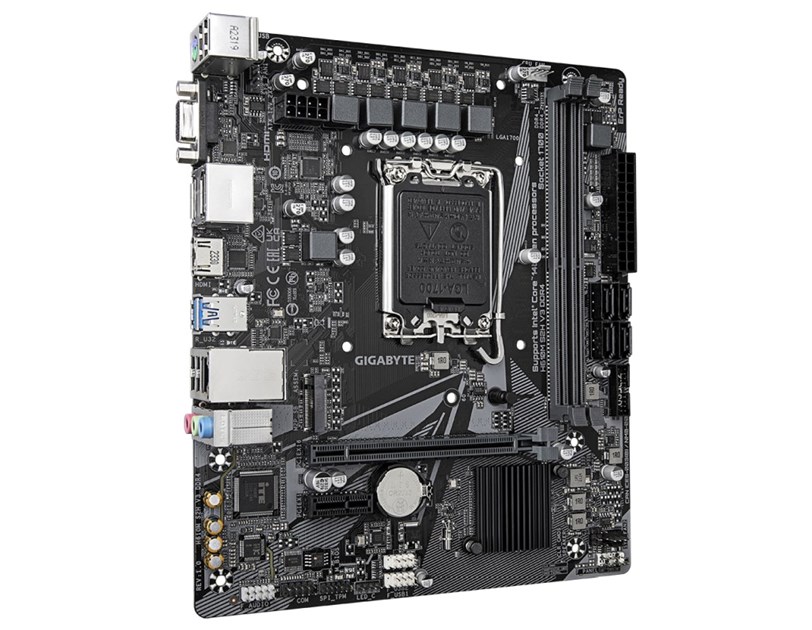

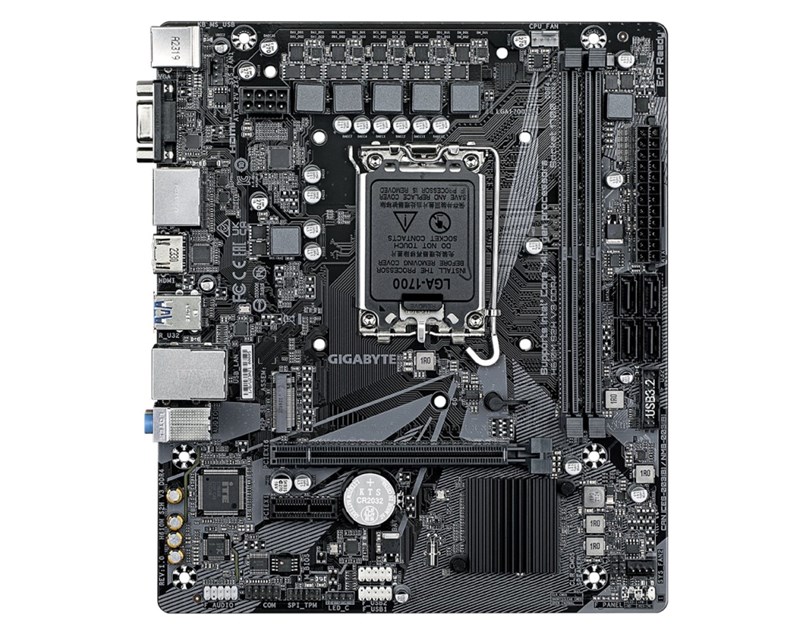

Gigabyte MB H610M S2H V3 DDR4, S.1700, 2xDDR4/3200, PCIe 4.0, G-LAN, VGA/HDMI/2×DP, mATX

Features
- Supports Intel Core 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design

Specifications
CPU:
- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors, L3 cache varies with CPU
- Chipset: Intel H610 Express Chipset

Memory
- Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
- Integrated Graphics Processor-Intel HD Graphics support:

• 1 x D-Sub port, supporting a maximum resolution of 1920x1200 60 Hz

• 1 x HDMI port, supporting a maximum resolution of 4096x216 060 Hz

• Support for HDMI 2.1 version and HDCP 2.3.

• Support native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304 60 Hz

• Support for DisplayPort 1.2 version and HDCP 2.3

• Support for up to triple-display at the same time

Audio
- Realtek Audio CODEC
- High Definition Audio

• 2/4/5.1/7.1-channel

LAN
- Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps

Expansion Slots
- CPU:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
- Chipset:

• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
- Chipset:

• 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)

• 4 x SATA 6Gb/s connectors

USB
- Chipset:

• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

• 4 x USB 2.0/1.1 ports on the back panel
- Chipset+USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 2 x system fan headers

• 1 x M.2 Socket 3 connector

• 4 x SATA 6Gb/s connectors

• 1 x RGB LED strip header

• 1 x front panel header

• 1 x front panel audio header

• 1 x speaker header

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)

• 1 x serial port header

• 1 x Clear CMOS jumper

• 1 x chassis intrusion header

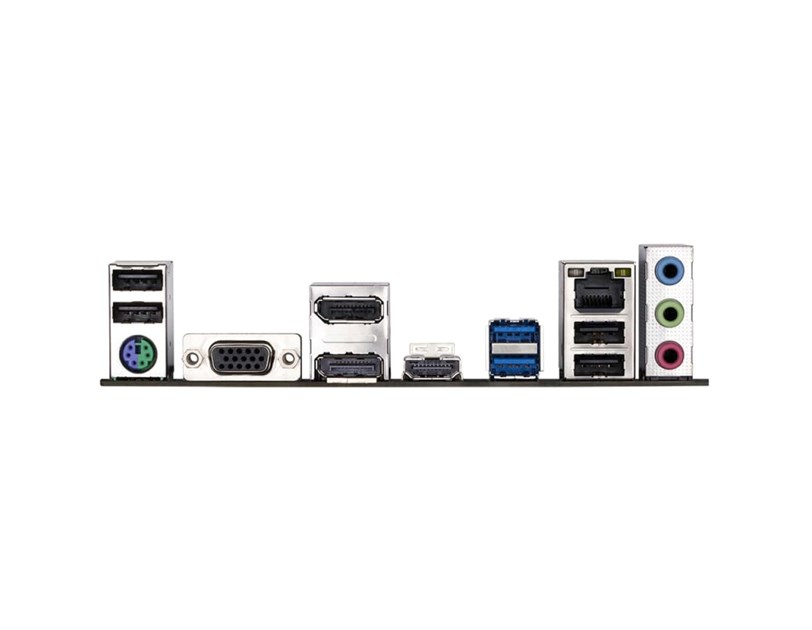

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port

• 1 x D-Sub port

• 2 x DisplayPorts

• 1 x HDMI port

• 2 x USB 3.2 Gen 1 ports

• 4 x USB 2.0/1.1 ports

• 1 x RJ-45 port

• 3 x audio jacks

I/O Controller
- iTE I/O Controller Chip

H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control

BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
- Support for APP Center
- BIOS
- EasyTune
- Smart Backup
- System Information Viewer
- Support for Q-Flash

Bundled Software:
- Norton Internet Security (OEM version)
- LAN bandwidth management software

Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit

Form Factor
- Micro ATX Form Factor; 22.3cm x 19.3cm
