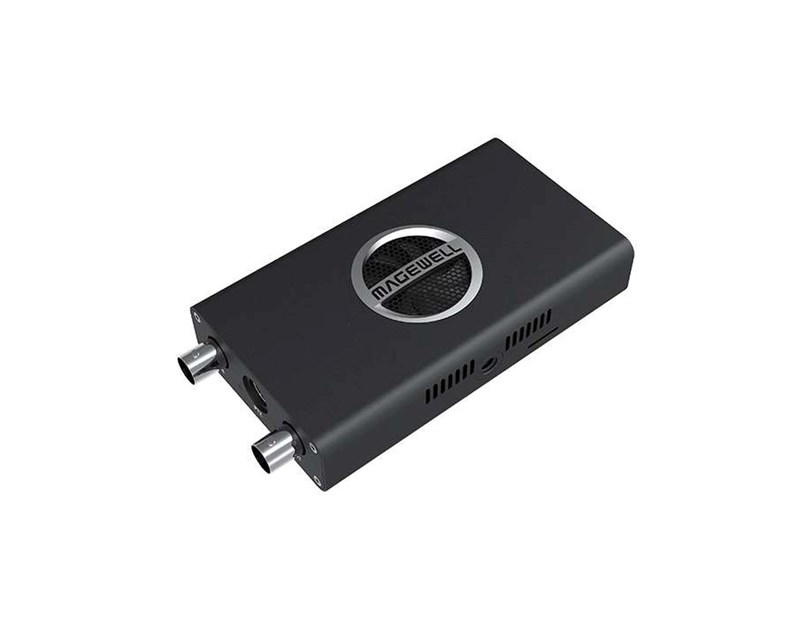

Magewell Pro Convert SDI 4K Plus, standalone box for converting one-channel 6G SDI into NDI stream, loop through (64030 (EU))

- Convert one channel of SD/3G/2K/6G-SDI signal with embedded audio to NDI stream
- Loop-through one channel of SD/3G/2K/6G-SDI signal with embedded audio

SUPPORTED WEB BROWSER
- Microsoft Internet Explorer 11
- Microsoft Edge
- Mozilla Firefox version 61 and above
- Google Chrome version 49 and above
- Apple Safari 11.1 and above
- Opera 55.0.2994.44 and above

SUPPORTED SOFTWARE
- OBS
- XSplit
- vMix
- VidBlasterX
- Wirecast
- streamstar SW
- mimoLive
- Any other NewTek NDI-enabled encoding or streaming software

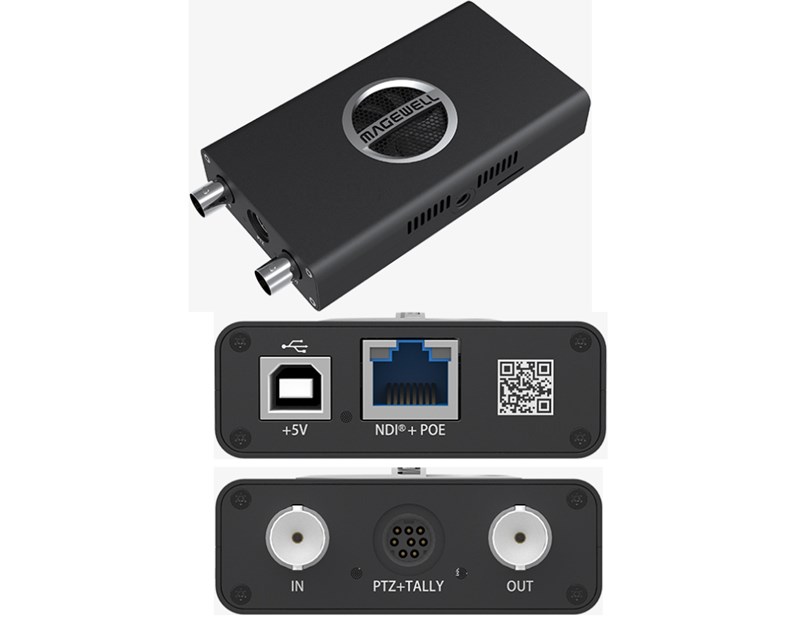

INPUT INTERFACES
- BNC
* SD/HD/3G/6G SDI

LOOP-THROUGH INTERFACE
- BNC
* SD/HD/3G/6G SDI

STORAGE INTERFACE
- SD Card (functions to be developed)

PTZ + TALLY CONTROL
- Mini-DIN–8 jack

SCREW MOUNTING HOLE
- 1/4-20 mounting hole

NETWORK INTERFACES
- 10/100/1000Mbps Ethernet
- IEEE 802.3af PoE

USB INTERFACE
- USB2.0 Type B
- 5V/2.1A power supply
- USB RNDIS/ECM

INPUT FEATURE
-Support for up to 4096x2160 30fps input resolution

SDI SPECIFIC FEATURES
- Integrated cable equalizer supporting cable lengths up to 150M for 3G-SDI signals
- Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G (SMPTE 2081) standards
- Support for 2K (2048×1080) & 4K (4096×2160) mode
- Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
- Support for 10/12-bit color depth
- Support for extraction of SMPTE 352 payload identifier
- Support for up to 16 (mono) audio channels
- Support for extraction of audio formation information & channel status data
- Limited support of 3Gb-DS: only the first stream can be captured
- Limited support for capture of the first link of dual link interfaces:
* YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
* YCbCr 4:4:4 10-bit: captured as 4:2:2
* RGB 4:4:4: R/B sub-sampled

NDI OUTPUT FORMAT
- Support for 4:2:2 8-bit output
- Support for up to 4096x2160 60fps output resolution
- Support for NDI 3.x

VIDEO PROCESSING FEATURES
- Support for capture resolutions up to 4096x2160
- Video brightness, contrast, saturation, hue adjustment
- Video de-interlacing
* Top field only
* Bottom field only
- Video aspect ratio conversion
* Auto or manual selection of output aspect ratio
- Video color format conversion
* Auto or manual selection of input color format & quantization range
* Auto or manual selection of output color format, quantization range & saturation range
* Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
* Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
* Support for Limited or Full quantization range
* Support for Limited, Full & ‘Extended gamut’ saturation range
- Video frame rate conversion
- Video mirror flip

NDI SOURCE NAME
- Support for setting the device name shown in the system using Web UI
* By default, the device name is "Pro Convert"
- Support for setting the source name shown in the system using Web UI
* By default, the source name is "board-index + serial number"
- Support for setting board-index, from 0 to F, through the on-board rotary switch

FIRMWARE UPGRADE
- Support for manual update using Web UI

LED INDICATOR
- Status LEDs indicate the working state of the device:
* Power supply: on/off
* Tally: preview/program
* Input signal: locked/unlocked
* Loopthrough signal: loopthrough connected and signal detected/undetected

FORM FACTOR
- 117.5(L) × 66.7(W) × 23.4(H) mm

ACCESSORIES
- USB 2.0 A to B Cable
- 5V/2.1A power adaptor
- Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
- L-bracket
- LED matrix panel (optional)

POWER CONSUMPTION
- 5V max current: 1.5A
- Max power consumption: 7W

WORKING ENVIRONMENT
- Operating temperature: 0C to 45 deg C
- Storage temperature: -20C to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
