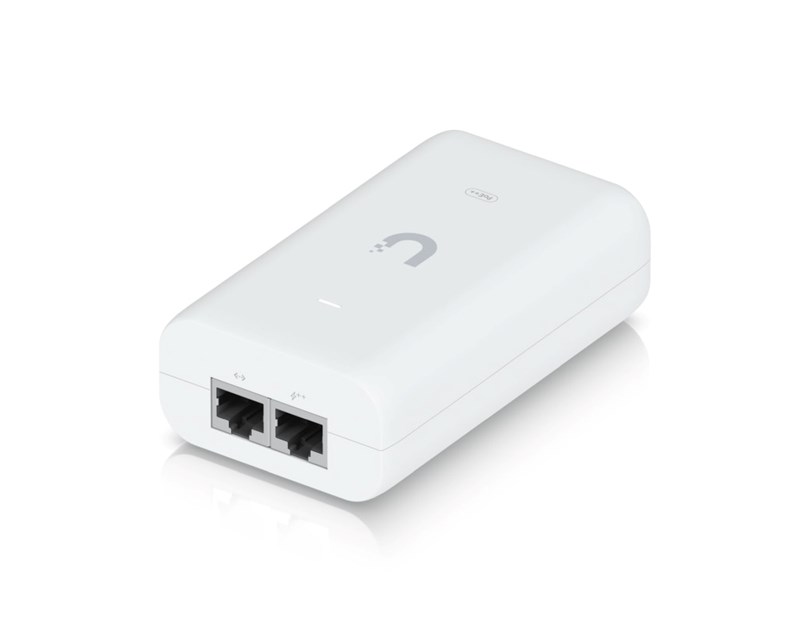

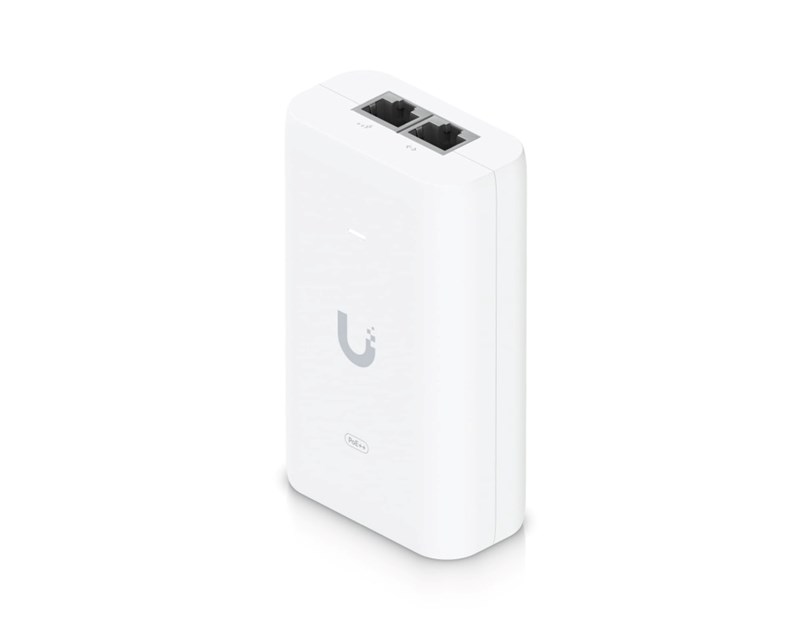

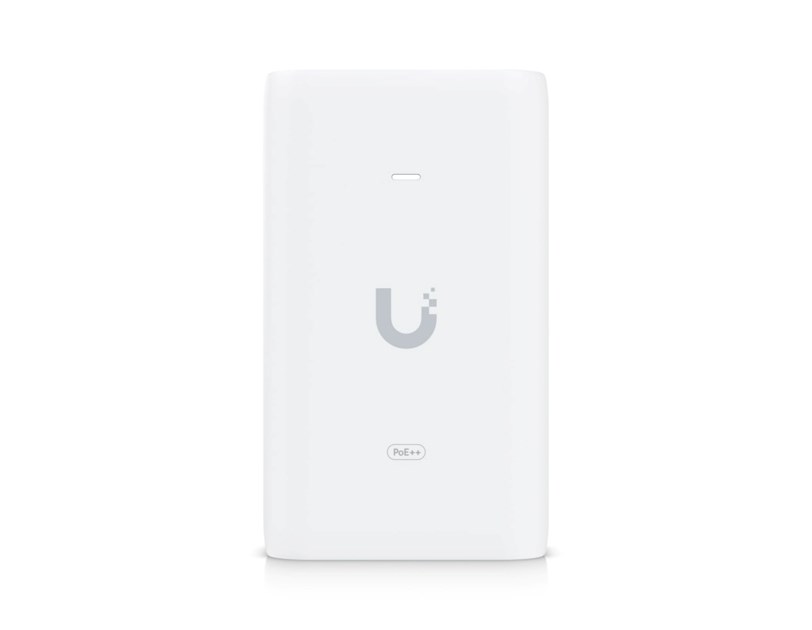

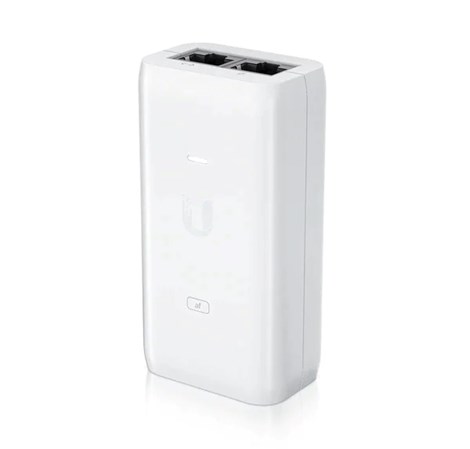

Ubiquiti PoE++ Adapter (60W)

- An adapter that can power UniFi PoE++ devices with wireless mesh applications, or offload PoE switch power dependencies.

Features
- Delivers up to 60W of PoE++
- Even more power for UA Hub, G4 PTZ, and other PoE++ devices
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE++ output
- LED indicator for status monitoring

Specifications
- Model: U-PoE++
- Dimensions: 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
- Weight: 210 g (7.4 oz)
- Output voltage: 48V DC 1.25A
- LAN activity indicator: No
- Gigabit LAN port: Yes
- Remote reset capability: No
- Reset button: No
- Rated voltage: 100—240V AC 50/60Hz
- Input current:

• 1.3A 120V AC

• 0.75A 230V AC
- Inrush current

• <100A peak 120V AC

• <200A peak 230V AC
- Efficiency: 85+%
- Output ripple: 1% max.
- Switching frequency: 65 kHz
- Line regulation: ? 1%
- Load regulation: ? 3%
- 2-pair powering: No
- 4-pair powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

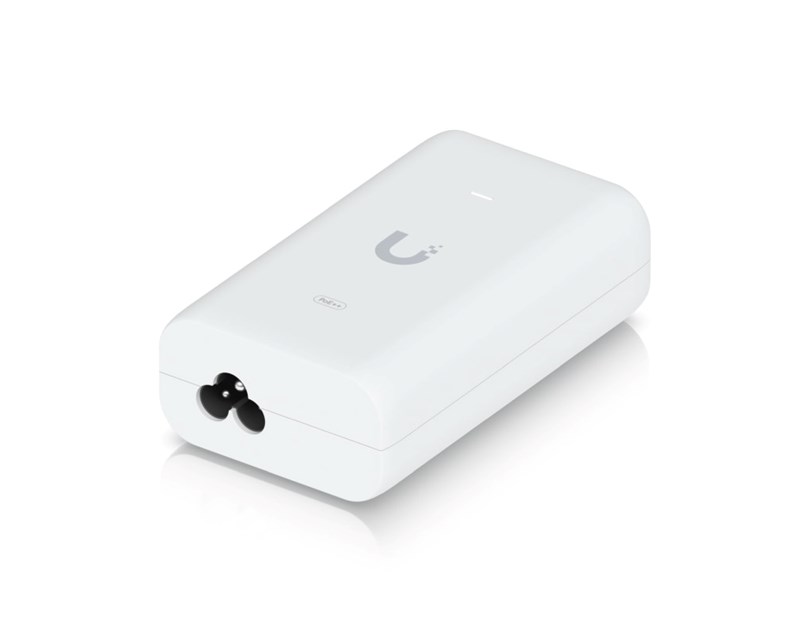

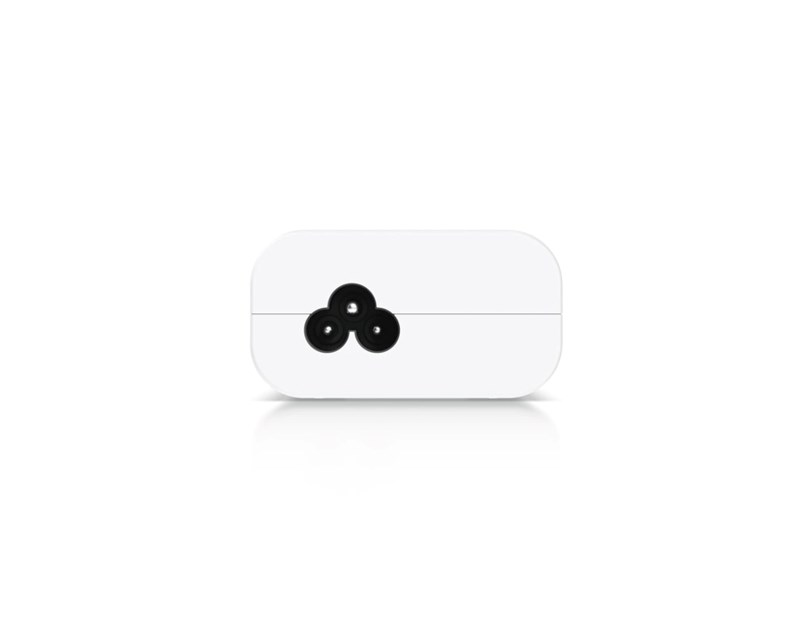

- AC connector: IEC-320 C6
- Data In / PoE: RJ45 shielded socket
- Surge protection: Difference and common mode
- Clamping protection: 11V data, 60V power
- Max. surge discharge: 1500A (8/20 µs) power
- Peak pulse current: 36A (10/1000 µs) data
- Shunt capacitance: <5 pF data
- Response time: <1 ns
- Power method: Universal AC input, 100—240V AC, 50/60 Hz
- Power supply: AC/DC
- Supported voltage range: 100—240V AC
- Max. PoE+ wattage per port by PSE: 60W
- Ambient operating temperature: 0 to 40° C (32 to 104° F)
- Storage temperature: -30 to 70°C (-22 to 158° F)
- Ambient operating humidity: 10 to 95% noncondensing
- Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
