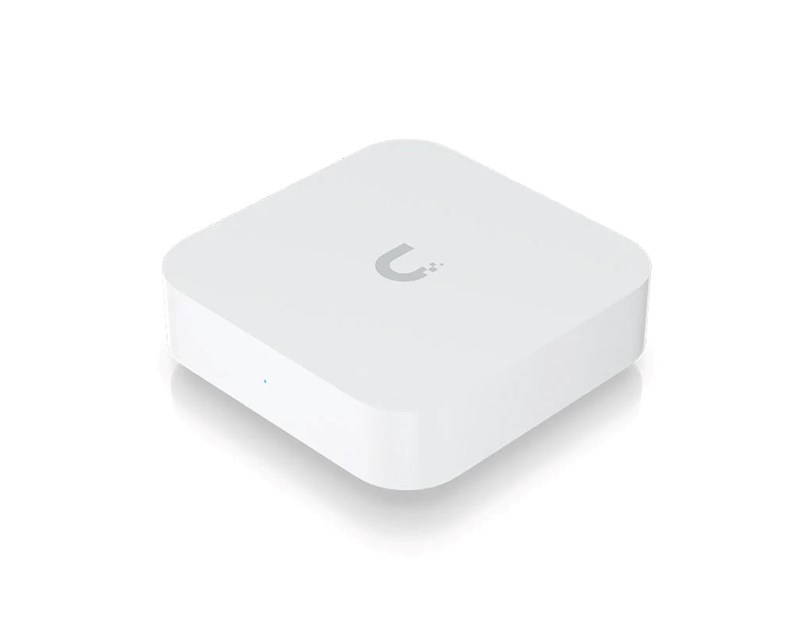

UXG-Lite UniFi gateway, 1x GbE WAN port, 1xGbE LAN port, USB-C,

- A compact and powerful UniFi gateway with a full suite of advanced routing and security features.
- Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server

Features

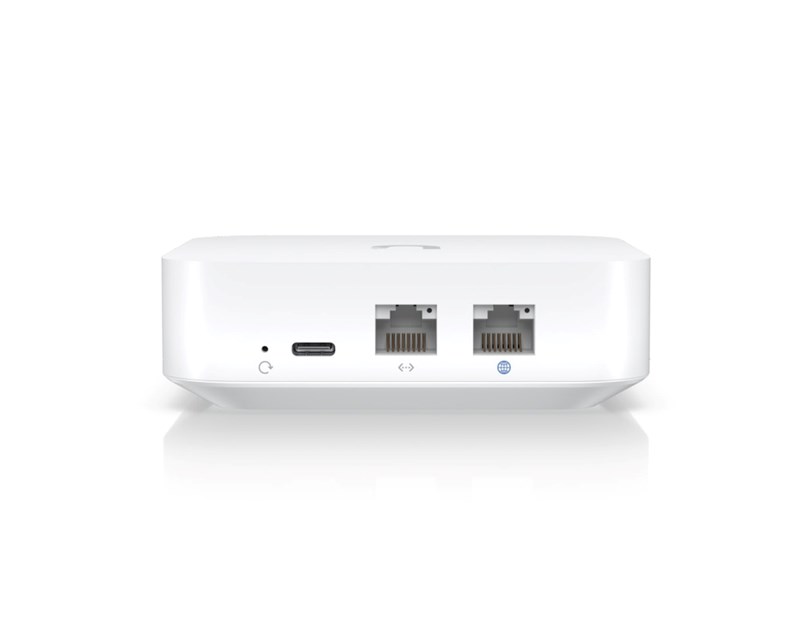

- (1) GbE WAN port
- (1) GbE LAN port
- Compact footprint

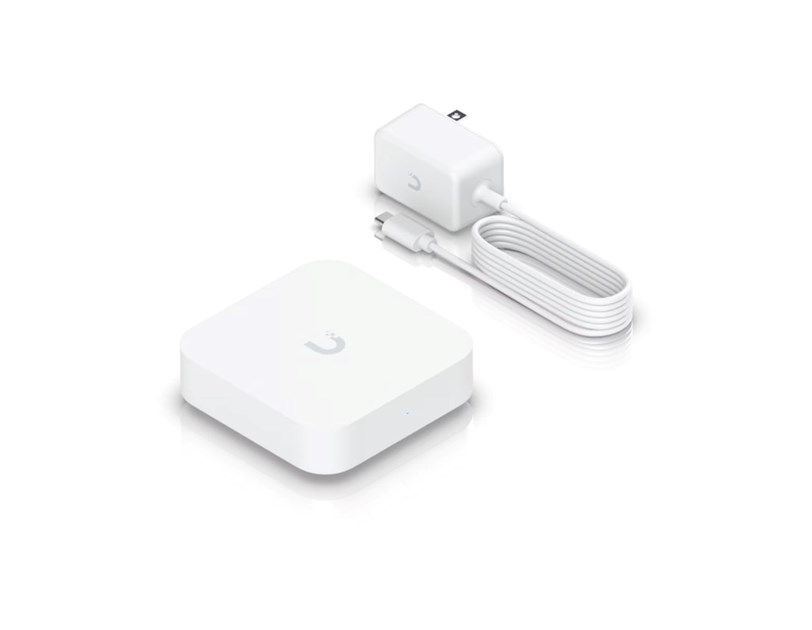

- USB-C powered (adapter included)
- Managed with UniFi Network 8.0.7 and later

Specifications
- Mechanical

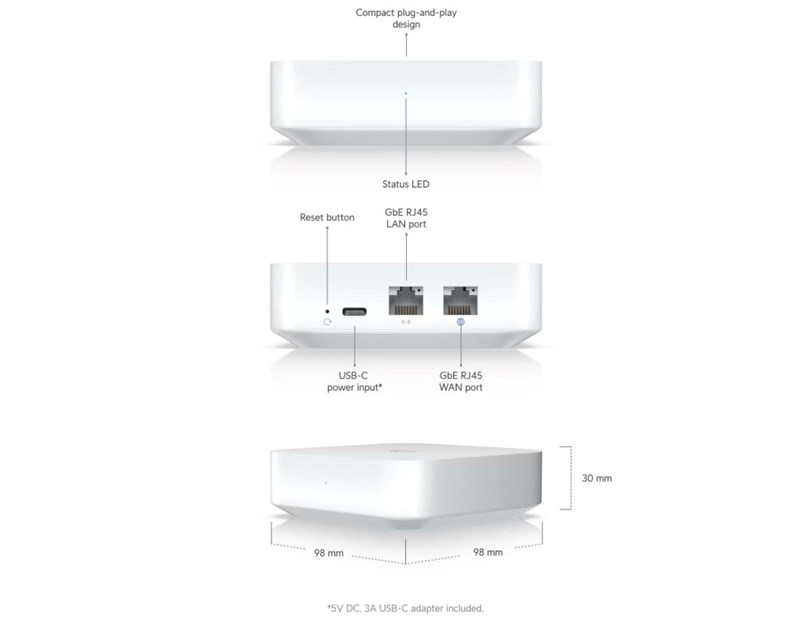

- Dimensions: 98 x 98 x 30 mm (3.9 x 3.9 x 1.2")
- Weight: 320 g (11.3 oz)
- Enclosure material: Polycarbonate

Hardware
- Processor: Dual-core ARM Cortex-A53 at 1 GHz
- Memory information: 1 GB DDR3L
- Management interface: Ethernet
- Bluetooth: 5.1
- Networking interface:

• LAN: (1) GbE RJ45 port

• WAN: (1) GbE RJ45 port
- Power method: USB type C (5V/3A)
- Supported voltage range: 100–240V
- Max. power consumption: 3.83W
- Operating temperature: -10 to 40° C (14 to 104° F)
- Operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC

Gateway Features
- Performance:

• WiFi QoS with UniFi APs

• Application, domain, and country-based QoS

• Application and device type identification

• Additional internet failover with LTE Backup

• Internet quality and outage reporting
- Next-generation security

• Application-aware firewall rules

• Signature-based IPS/IDS threat detection

• Content, country, domain, and ad filtering

• VLAN/subnet-based traffic segmentation

• Full stateful firewall
- Advanced networking

• License-free SD-WAN*

• WireGuard, L2TP and OpenVPN server

• OpenVPN client

• OpenVPN and IPsec site-to-site VPN

• One-click Teleport* and Identity Enterprise VPN**

• Policy-based WAN and VPN routing

• DHCP relay

• Customizable DHCP server

• IPv6 ISP support
*When paired with a Cloud Key or Official UniFi Hosting.
**When paired with a Cloud Key.

Application Requirements
- UniFi Network: Version 8.0.7 and later
