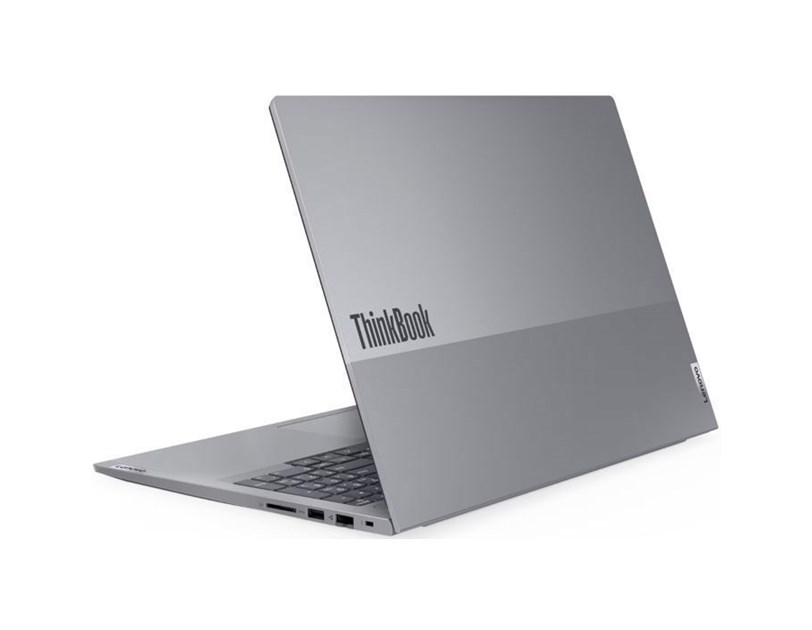

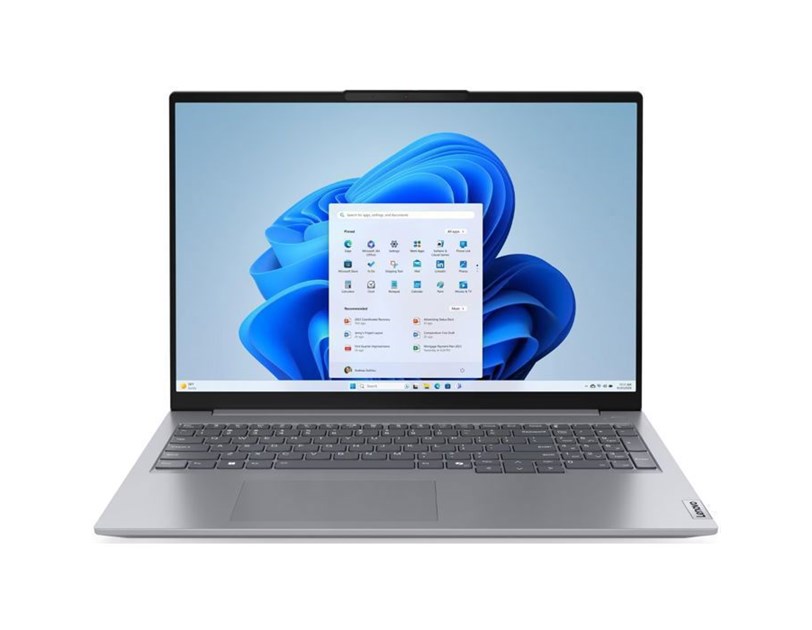

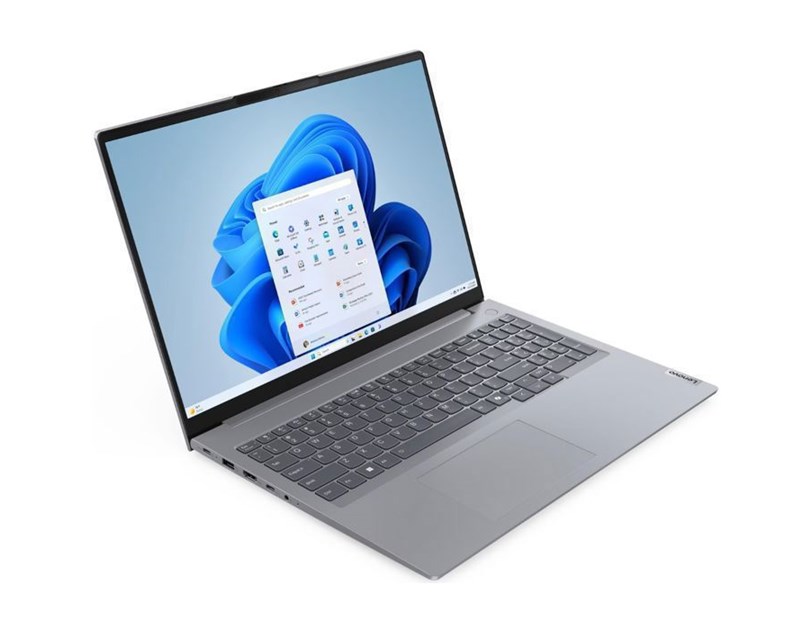

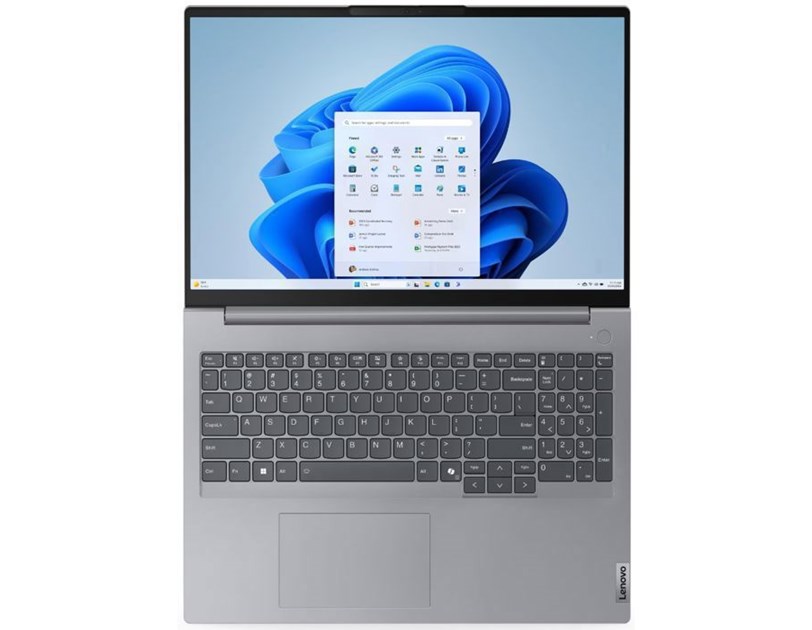

Lenovo ThinkBook 16 G9 16" WUXGA, Intel Core i5-13420H, 16GB DDR5, 512GB SSD, Intel UHD, WiFi/BT, Win 11 Pro + 3Y (21US005PSC-W11P)

Processor : Intel Core™ i5-13420H, 8C (4P + 4E) / 12T, P-core up to 4.6GHz, E-core up to 3.4GHz, 12MB Intel® Smart Cache
AI PC Category : Non-AI PC
Graphics: Integrated Intel® UHD Graphics
Chipset
Intel® SoC Platform
Memory
1x 16GB SODIMM DDR5-5200
Memory Slots
Two DDR5 SODIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR5-5200
Storage
512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®
Storage Slot
Two M.2 slots

• One M.2 2242 PCIe® 4.0 x4 slot

• One M.2 2280 PCIe® 4.0 x4 slot

Max Storage Support
Up to two drives, 2x M.2 SSD

• M.2 2242 SSD up to 2TB

• M.2 2280 SSD up to 2TB

Card Reader
SD Card Reader
Audio Chip
High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers
Stereo speakers, 2W x2, Dolby Audio™
Microphone
2x, Array
Camera
FHD 1080p + IR Hybrid with Privacy Shutter
Battery
48Wh
Power Adapter
65W USB-C® (3-pin)
Special Features
Modern Standby
DESIGN
Display
16" WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC, 60Hz
Touchscreen
None
Screen-to-Body Ratio
90%
Pen
Pen Not Supported
Keyboard
Backlit, Slovenian
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
WLAN + Bluetooth
Wi-Fi® 7, 802.11be 2x2 + BT5.4
Operating system: Win 11 Pro
Ethernet
100/1000M (RJ-45)
Standard Ports
1x USB-A (USB 5Gbps), Always On
1x USB-A (USB 5Gbps)
1x USB-C® (USB 10Gbps), with USB PD 45-65W and DisplayPort™ 1.4
1x Thunderbolt™ 4, with USB PD 45-65W and DisplayPort™ 1.4
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x SD card reader
Docking
Various docking solutions supported via Thunderbolt™ or USB-C®.
For more compatible docking solutions, please visit Docking for ThinkBook® 16 G9 IRL
SECURITY & PRIVACY
Security Chip
Discrete TPM 2.0 Enabled
Physical Locks
Kensington Nano Security Slot™, 2.5 x 6 mm
Fingerprint Reader
Touch Style, Match-on-Chip, Integrated in Power Button
Other Security
Camera privacy shutter
MIL-STD-810H military test passed
