MikroTik CubeSA 60Pro ac antena, za 60 GHz uređaje do 800m, ARM 32bit, IPQ-4019, 64MB RAM, RouterOS

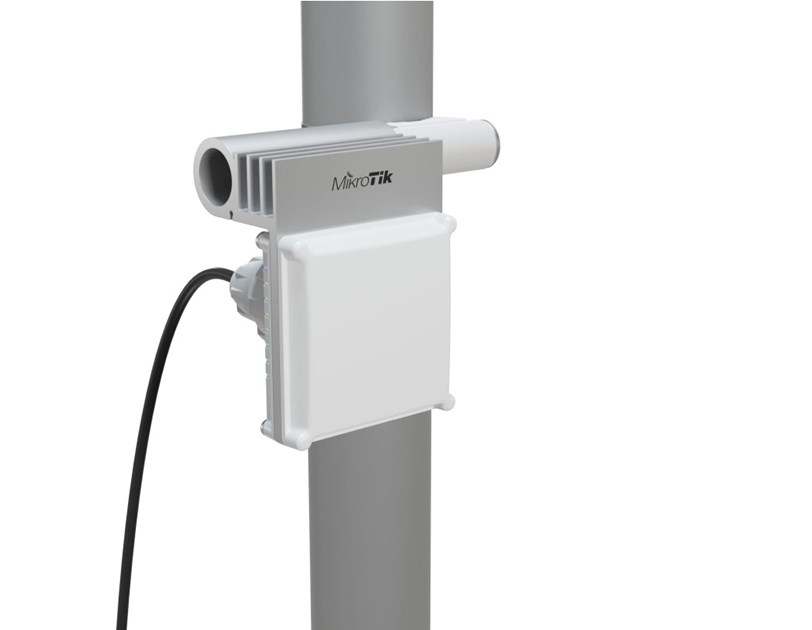

- A powerful sector antenna to connect multiple 60 GHz devices. Quick and easy networking for all kinds of pop-up events and distances up to 800m.
Long gone are the days when you had to rely on cables for speed and stability. 60 GHz solutions offer fiber-like speed and stability - while saving you plenty of time and money on installation and maintenance. Our latest Cube 60Pro product line is taking the advantages of 60 GHz networking to the next level – with the 802.11ay standard for even higher distances, stability, speed, and convenience.

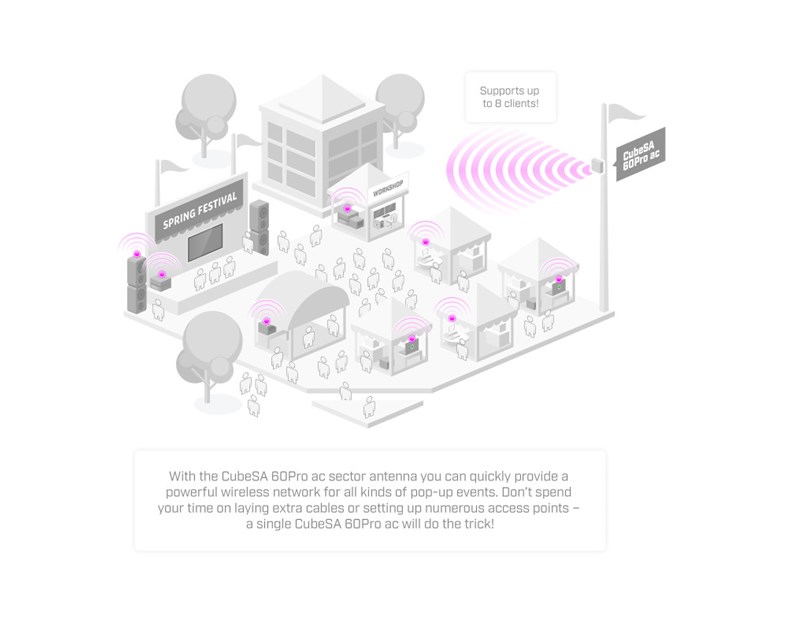

- If you need to connect multiple devices – take a look at the CubeSA 60Pro ac sector antenna. Reaching distances around 600 meters in point-to-multipoint mode, this device can be very helpful for all kinds of event management: from live shows, festivals, and workshops to construction sites, pop-up vaccination clinics, and so on. No need for complex wired installations in every location – the portable and handy CubeSA 60Pro ac has got you covered! Depending on your setup, the distance can be even greater. For example, with devices like MikroTik nRAY, you can reach up to 800 meters.

- Forget about downtime with the automatic 5 GHz backup connection

- The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. But it can sometimes struggle during bad weather conditions. That’s why both Cube 60Pro devices feature an automatic 5 GHz failover. We have added a powerful directional antenna so that the 5 GHz range can keep up with the 60 GHz.

- More durability, less unwanted attention

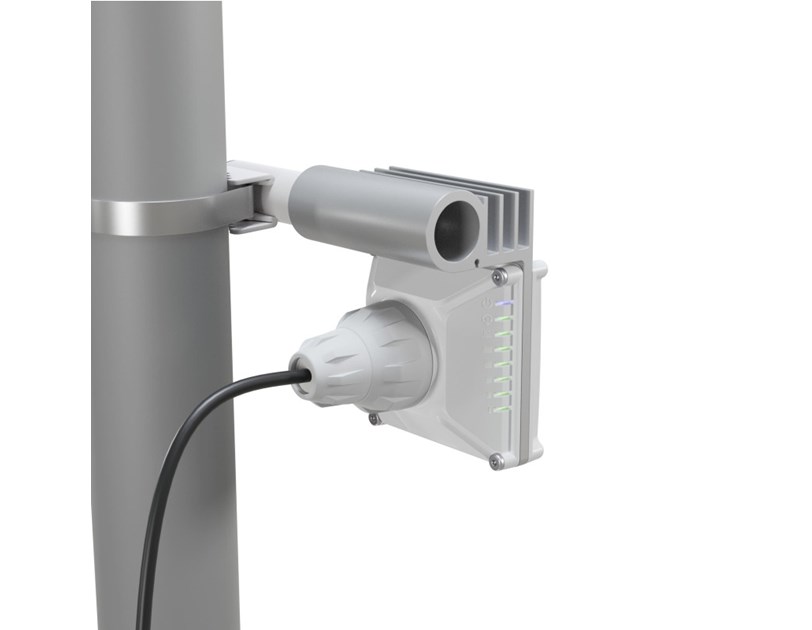

- We have upgraded the enclosure to feature a strong metal base – for better mounting and cooling options. The Cube form-factor emerges from pure practicality: it is durable, unobtrusive, and compact.

Specifikacije
Details
- Product code: CubeG-5ac60ay-SA
- Architecture: ARM 32bit
- CPU: IPQ-4019
- CPU core count: 4
- CPU nominal frequency: 448-896 (auto) MHz
- Dimensions: 115 x 211 x 90 mm
- RouterOS license: 4
- Operating System: RouterOS
- Size of RAM: 256 MB
- Storage size: 64 MB
- Storage type: FLASH
- MTBF: Approximately 200'000 hours at 25C
- Tested ambient temperature: -40°C to 70°C

Powering
- Number of DC inputs 1 (PoE-IN)
- Max power consumption 13 W
- Cooling type Passive
- PoE in 802.3af/at
- PoE in input Voltage 18-48 V

Wireless specifications
- Wireless 5 GHz Max data rate 433 Mbit/s
- Wireless 5 GHz number of chains 1
- Wireless 5 GHz standards 802.11a/n/ac
- Antenna gain dBi for 5 GHz 11.5
- Wireless 5 GHz chip model IPQ4019
- Wireless 5 GHz generation Wi-Fi 5

Ethernet
- 10/100/1000 Ethernet ports: 1

Other
- GNSS standards GPS
- Certification & Approvals
- Certification: CE, FCC, IC, EAC, ROHS
- IP: 66

Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 22 -93
54MBit/s 18 -74
MCS0 22 -93
MCS7 17 -71
MCS9 15 -68
