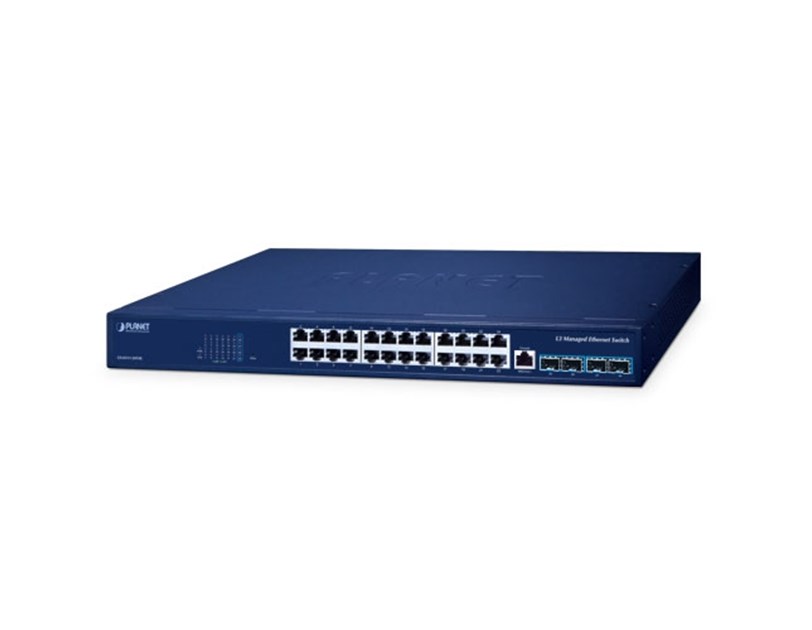

PLANET Layer 3 24-Port 10/100/1000T + 4-Port 10G SFP+ Managed Ethernet Switch

Powerful 10Gbps and Layer 3 Routing Solution for Enterprise Backbone and Data Center Networking
PLANET GS-6311-24T4X is a brand-new Layer 3 Managed Gigabit Switch with 10Gbps uplink capability for various kinds of network applications and flexible deployment. The GS-6311-24T4X features 24 10/100/1000BASE-T RJ45 copper ports and 4 1G/10GBASE-X SFP+ ports with 128Gbps switch fabric delivered in a 1U rugged case with fanless design.

The GS-6311-24T4X provides high-density performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 10Gbps interfaces and 128Gbps switching fabric, the GS-6311-24T4X can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high-capacity servers. The powerful multicast routing and network security features make the GS-6311-24T4X perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications.

High Performance 10Gbps Ethernet Capacity
The four SFP+ ports built in the GS-6311-24T4X boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as up to 128Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Each of the SFP+ ports supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

Redundant Ring, Fast Recovery for Critical Network Applications
The GS-6311-24T4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in harsh environments. In a certain simple Ring network, the recovery time could be less than 15ms to quickly bring the network back to normal operation.

Layer 3 Routing Support
The GS-6311-24T4X enables the administrator to conveniently boost network efficiency by configuring Layer 3 static routing manually, the RIP (Routing Information Protocol) or OSPF (Open Shortest Path First) settings automatically.
- The RIP can employ the hop count as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.
- The OSPF is an interior dynamic routing protocol for autonomous system based on link state. The protocol creates a database for link state by exchanging link states among Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Strong Multicast
The GS-6311-24T4X supports abundant multicast features. In Layer 2, it features IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping. In Layer 3 multicast protocols, it features IGMPv1/v2/v3. With Multicast VLAN Register (MVR), multicast receiver/sender control and illegal multicast source detect functions which make the GS-6311-24T4X great for any robust networking.

Hardware features:

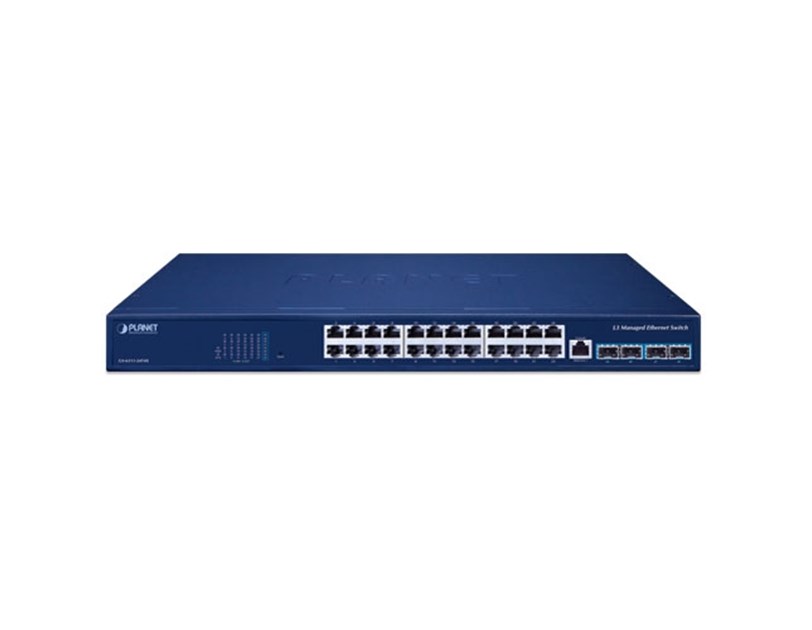

- Copper Ports: 24x 10/100/1000BASE-T RJ45 copper ports (ports 1 to 24)
- 10G SFP+ Ports: 4x 10GBASE-SR/LR SFP+ interfaces (ports 25 to 28)
- Backward compatible with 1000BASE-SX/LX/BX SFP transceiver
- Console Port: 1 x RJ45-to-RS232 serial port (9600, 8, N, 1)
- CPU: MIPS 800MHz
- RAM: 512Mbytes
- Flash Memory: 32Mbytes
- ESD Protection: Contact ±6KV , Air ±8KV
- Surge Protection: Differential mode ±2KV , Common mode ±4KV
- Dimensions (W x D x H): 440x207x44 mm
- Weight. 2742g
- Power Consumption: 23.2 watts/79.11 BTU

Switching features:
- Switch Architecture: Store-and-forward
- Switch Fabric: 128Gbps/non-blocking
- Switch Throughput: 95.23Mpps
- Address Table: 16K MAC address table with auto learning function
- ARP Table: 8K
- Routing Table: 6K
- IP Interface: 1024
- ACL Table: 2K
- Shared Data Buffer: 12MB
- Jumbo Frame: 12KBytes

IPv4 Layer 3 Functions:
- IP Routing Protocol: Static route; RIPv1/v2; OSPFv2
- Multicast Routing Protocol: IGMP v1/v2/v3
- Layer 3 Protocol: ARP; ARP Proxy; IGMP Proxy

IPv6 Layer 3 Functions:
- Other: ICMPv6,ND,DNSv6
