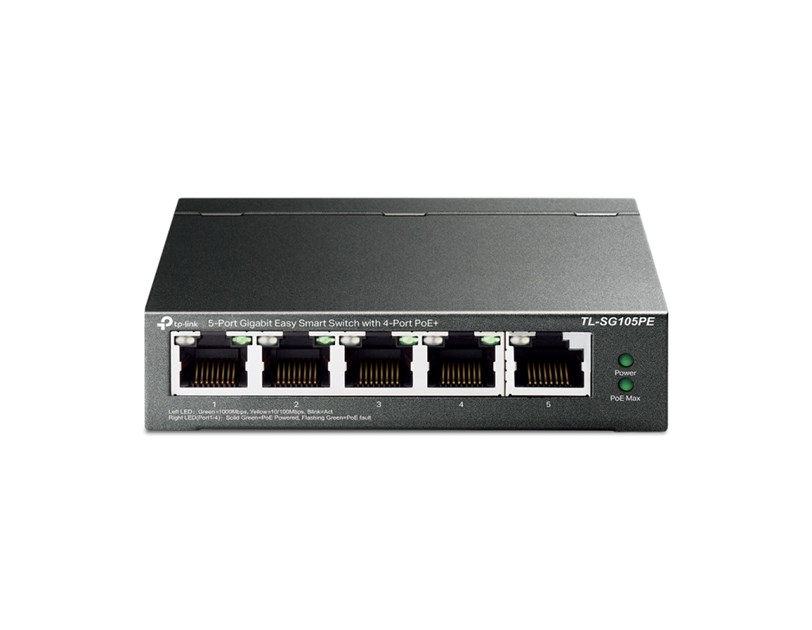

TP-Link 5-port Gigabit PoE Easy Smart preklopnik (Switch), 5×10/100/1000M RJ45, 4×PoE+, metalno kućište, 13" (65W)
20241106T13_55_57Z.png)
-
Šifra artiklaTL-SG105PE
-
Kataloški brojTL-SG105PE
-
Jamstvo5 godina
{{CurrentProduct.SinglePriceToPay_print}}
Features
- Five 10/100/1000Mbps RJ45 ports

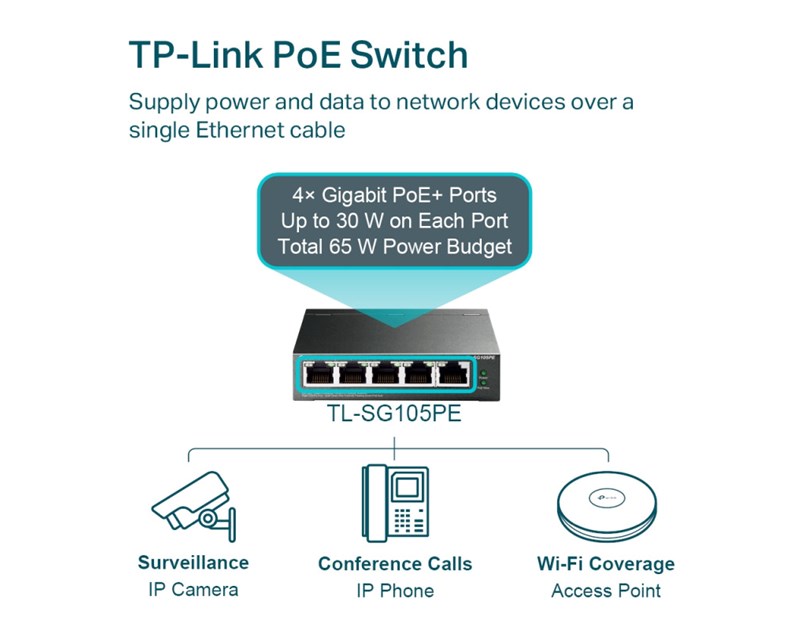

- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 65 W for all PoE ports

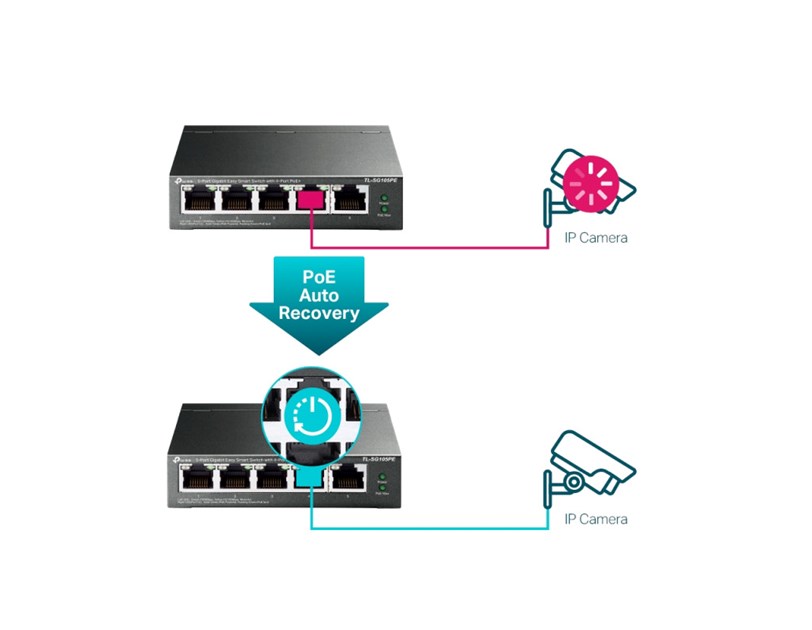

- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

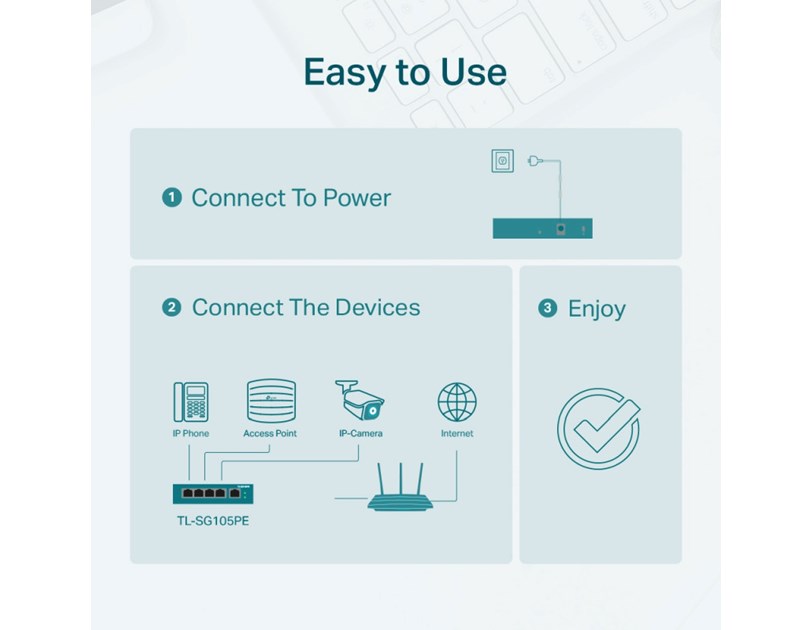

- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Specifications
HARDWARE FEATURES
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
- Interface: 5× 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100 Ohm STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100 Ohm STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
* EIA/TIA-568 100 Ohm STP (maximum 100m)
- Fan Quantity: Fanless

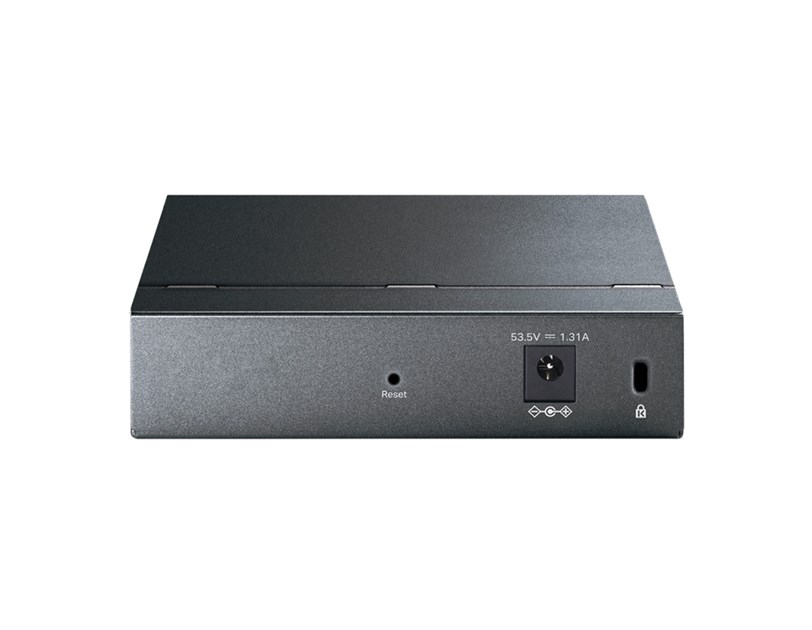

- Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)
- PoE Ports (RJ45)
* Standard: 802.3 af/at compliant
* PoE Ports: Port 1- Port 4
* PoE Power Budget: 65 W
- Dimensions (W×D×H): 99.8×98×25 mm
- Max Power Consumption:
* 4.52 W (220V/50Hz with no PD connected)
* 75.16 W (220V/50Hz with 65 W PD connected)
- Max Heat Dissipation:
* 15.41 BTU/h (with no PD connected)
* 256.30 BTU/h (with 65 W PD connected)
PERFORMANCE
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- MAC Address Table: 2 K
- Packet Buffer Memory: 1.5 Mb
- Jumbo Frame: 16 KB
SOFTWARE FEATURES
- Quality of Service:
* Support Port-Based/802.1p/DSCP priority
* Support 4 priority queues
* Rate Limit
* Storm Control
- L2 Features:
* IGMP Snooping V1/V2/V3
* Static Link Aggregation
* Port Mirroring
* Cable Diagnostics
* Loop Prevention
* PoE Auto Recovery
* Extend Mode
- VLAN:
* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN
- Management: Web-based GUI, Easy Smart Configuration Utility
- Transmission Method: Store-And-Forward
OTHERS
- Certification: FCC, CE, RoHS
- Package Contents: TL-SG105PE, Power Adapter, Installation Guide, Rbber Feet
- System Requirements: Microsoft Windows for running Utility
- Environment:
* Operating Temperature: 0C to 40C (32F to 104F)
* Storage Temperature: -40C to 70C (-40F to 158F)
* Operating Humidity: 10% - 90% RH non-condensing
* Storage Humidity: 5% - 95% RH non-condensing
- Five 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 65 W for all PoE ports
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise
Specifications
HARDWARE FEATURES
- Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
- Interface: 5× 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
* EIA/TIA-568 100 Ohm STP (maximum 100m)
* 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
* EIA/TIA-568 100 Ohm STP (maximum 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
* EIA/TIA-568 100 Ohm STP (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)
- PoE Ports (RJ45)
* Standard: 802.3 af/at compliant
* PoE Ports: Port 1- Port 4
* PoE Power Budget: 65 W
- Dimensions (W×D×H): 99.8×98×25 mm
- Max Power Consumption:
* 4.52 W (220V/50Hz with no PD connected)
* 75.16 W (220V/50Hz with 65 W PD connected)
- Max Heat Dissipation:
* 15.41 BTU/h (with no PD connected)
* 256.30 BTU/h (with 65 W PD connected)
PERFORMANCE
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- MAC Address Table: 2 K
- Packet Buffer Memory: 1.5 Mb
- Jumbo Frame: 16 KB
SOFTWARE FEATURES
- Quality of Service:
* Support Port-Based/802.1p/DSCP priority
* Support 4 priority queues
* Rate Limit
* Storm Control
- L2 Features:
* IGMP Snooping V1/V2/V3
* Static Link Aggregation
* Port Mirroring
* Cable Diagnostics
* Loop Prevention
* PoE Auto Recovery
* Extend Mode
- VLAN:
* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN
- Management: Web-based GUI, Easy Smart Configuration Utility
- Transmission Method: Store-And-Forward
OTHERS
- Certification: FCC, CE, RoHS
- Package Contents: TL-SG105PE, Power Adapter, Installation Guide, Rbber Feet
- System Requirements: Microsoft Windows for running Utility
- Environment:
* Operating Temperature: 0C to 40C (32F to 104F)
* Storage Temperature: -40C to 70C (-40F to 158F)
* Operating Humidity: 10% - 90% RH non-condensing
* Storage Humidity: 5% - 95% RH non-condensing
