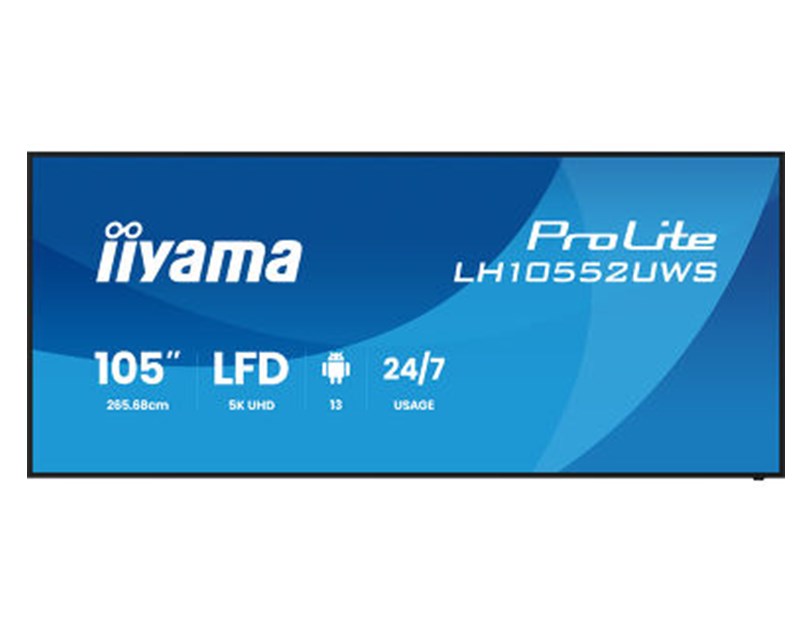

IIYAMA 105" LH10552UWS-B1AG 5K UWD (5120x2160) IPS 21:9 Signage 24/7, 500 cd/m2, 1200:1, Android OS, iiyama DMS, iiyama Share, EShare

ProLite LH10552UWS-B1AG with extra-wide 105" 5K collaboration display

The ProLite LH10552UWS-B1AG delivers stunning 5K UltraWide resolution on a 105" IPS panel, ideal for hybrid meetings, control rooms and immersive presentations. With USB-C connectivity, 100W power delivery, Android OS and integrated speakers with subwoofer, it offers a complete all-in-one solution for modern workspaces.

DISPLAY CHARACTERISTICS
Diagonal 104.6", 265.68cm
Panel IPS, AG coated glass, matte finish, haze 25%
Native resolution 5120 x 2160 @60Hz (5KUW)
Aspect ratio 21:9
Panel brightness 500 cd/m2
Static contrast 1200:1
Dynamic contrast 5000:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07G (8 Bits+FRC) (NTSC 85%)
Horizontal Sync 30 - 135kHz
Viewable area W x H 2449.92 x 1033.56mm, 96.5 x 40.7"
Bezel width (sides, top, bottom) 14.9mm, 14.9mm, 14.9mm
Pixel pitch 0.14355 x 0.14355mm
INTERFACES / CONNECTORS / CONTROLS
Digital signal input HDMI x1 (5120 x 2160 60Hz, HDMI 2/3/4 x3: 3840 x 2160 60Hz)
DisplayPort x1 (5120 x 2160 60Hz)
USB-C x1 (3840 x 2160 60Hz)
Audio input Mini jack x1 (3.5mm)
Monitor control input RS-232c x1
RJ45 (LAN) x2 (1000Mbps)
Digital signal output HDMI x1 (Max. resolution 3840 x 2160 @60Hz HDMI2,0 HDCP 1.4)
Audio output Mini jack x1 (3.5mm)
Speakers 2 x 20W (20W subwoofer)
Monitor control output OPS Slot x1 (65%(max) is plug in OPS)
USB ports x3 (2.0)
RJ45 (LAN) x2 ((IN/OUT) 1000Mbps)
FEATURES
Integrated software Android 13 OS, iiyama DMS, iiyama share
WiFi yes (WiFi 6E + BT 5.2)
Hardware SOC: RK3588 Octo-core A76x4 + A55x4, GPU Mali G640 MP4, RAM: 8GB, ROM: 128 GB
Extra 1x Intel OPS 80pin
Kiosk mode yes
Max. non-stop operating time 24/7
Housing (bezel) metal
GENERAL
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, CAT, FI, DA, ET, LV, LT, HU
Control buttons Power key (1key with On: LED Off: , Long push(power off (LED :Red) Turn off/on backlight(Short click) Standby modus (LED :Red Flashing fast)
User controls Wireless & Network(Ethernet, Wi-Fi, Hotspot, VPN, Share Network), Personal(Wallpaper), Input & Output(Sound Output Settings, Input Naming Settings, HDMI OUT Format, CEC), System(Date & Time, Language & Keyboard, Startup & Shutdown, Screen orientation, Pixel Shift, Storage, System Update, Advance Settings, Security, User Experience Improvement), About(Legal Information, Module Number, Android Version, Kernel Version, Build Number, Firmware Version, Serial Number)
Blue light reducer yes
Flicker free yes
Plug&Play DDC2B
MECHANICAL
Orientation landscape, portrait
VESA mounting 1000 x 600 m8 x 25
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
ACCESSORIES INCLUDED
Cables power (3m), HDMI (3m), DP (3m), RS-232c (3m)
Guides quick start guide, safety guide
Other Guides, cable management cover, remote control, cable ties (5 units), webcam bracket, wall mount bracket, wall mount bracket set
Remote control yes (batteries included)
POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 248W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) G
REACH SVHC above 0.1%: Lead
DIMENSIONS / WEIGHT
Product dimensions W x H x D 2489.9 x 1081.4 x 77mm
Box dimensions W x H x D 2668 x 1233 x 280mm
Pallet volume 32pcs
Pallet dimensions W x H x D 2380 x 1140 x 129mm
Weight (without box) 53.5kg
Weight (with box) 79.5kg
EAN code 4948570128020
