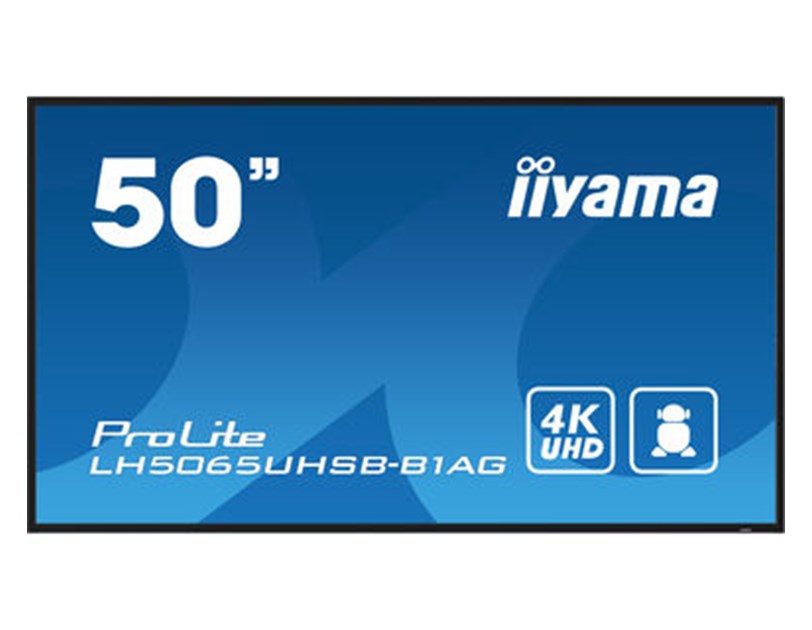

IIYAMA 50" LH5065UHSB-B1AG 4K UHD (3840x2160) VA Signage 24/7, 800 cd/m2, 5000:1, Android OS, E-Share, iiSignage2

50" Vivid-Bright Display with 4K resolution and 800cd/m2 panels for illuminating communication

Create dynamic, show stopping content, designed to entice and captivate your audience. The LH5065UHSB vivid-bright display, boasting 800cd/m2, can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and smoothly run third party applications, including multiple CMS platforms.

The on-board iiSignage2 (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network.

With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

DISPLAY CHARACTERISTICS
Design Thin bezel
Diagonal 49.5", 125.7cm
Panel VA, Anti-Glare coated glass, matt finish, haze 25%
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 800 cd/m2
Static contrast 5000:1
Response time (GTG) 9.5ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07G (8 Bits+FRC) (NTSC 72%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 1096 x 616.5mm, 43.1 x 24.3"
Bezel width (sides, top, bottom) 13.25mm, 13.5mm, 13.5mm
Pixel pitch 0.285mm
Bezel colour and finish black, matte
INTERFACES / CONNECTORS / CONTROLS
Digital signal input HDMI x2 (v.2.0, max. 3840x2160 @60Hz)
DisplayPort x1 (v.1.2, max. 3840x2160 @60Hz)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1
Audio output Mini jack x1 (3.5mm - stereo)
Speakers 2 x 10W
HDCP v.2.2
USB ports x2 (v.2.0)
FEATURES
Integrated software Android 11 OS, iiSignage2, iiControl, iiShare, FailOver, EShare
WiFi yes (Built-in, 802.11ac)
Hardware CPU: A73*4+A53*4, GPU: G52 MP8, RAM: 4GB, ROM: 32GB
Max. non-stop operating time 24/7
Media playback yes
Housing (bezel) metal
GENERAL
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, advanced option reset)
Plug&Play DDC2B
MECHANICAL
Orientation landscape, portrait
Fanless design yes
VESA mounting 400 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables power (1.8m), HDMI (1.8m), RS-232c (1.8m)
Guides quick start guide, safety guide
Other AC switch cover, Screw, Stickers for screw holes
Remote control yes (batteries included)
POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 65W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CE, TÜV-Bauart, RoHS support, ErP, WEEE, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) E
REACH SVHC above 0.1%: Lead, Lead monoxide
DIMENSIONS / WEIGHT
Product dimensions W x H x D 1127.6 x 643.5 x 55mm
Box dimensions W x H x D 1370 x 850 x 156mm
Weight (without box) 11.3kg
Weight (with box) 14.85kg
EAN code 4948570123568
