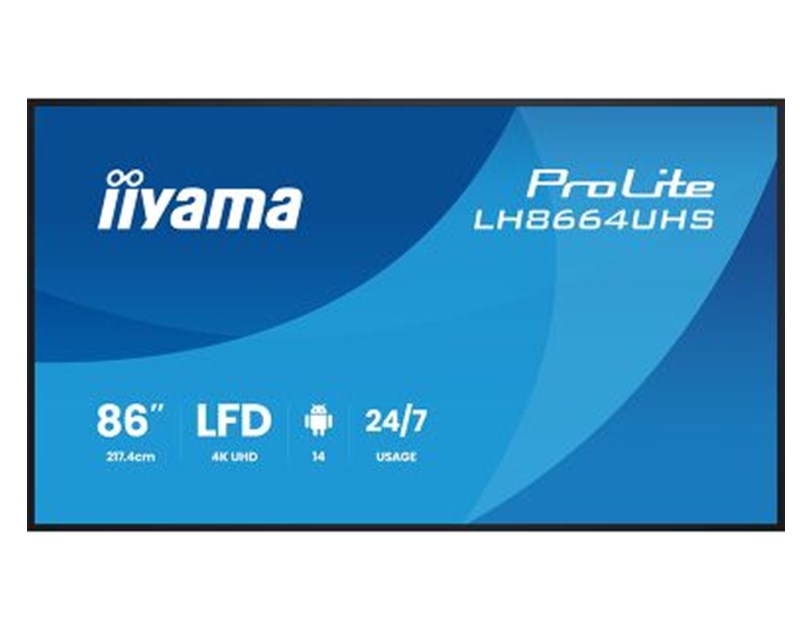

IIYAMA 86" LH8664UHS-B3AG 4K UHD (3840x2160) IPS Signage 24/7, 500 cd/m2, 1200:1, Android OS 14, iiShare, iiControl, iiSignage2

86" 4K UHD professional digital signage display with advanced control and connectivity options

Elevate your visual communication with the LH8664UHS-B3AG and unlock the new possibilities for your business. This 500cd/m2 high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With Android 14 OS, iiSignage2 (CMS), iiControl (DMS) and iiShare, plus EShare (Wireless Presentation) features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. WiFi enabled, the display is ready for remote content delivery using your network or you can choose to utilise LAN control.

Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH8664UHS-B3AG will undoubtedly captivate your audience and leave a lasting impression.

DISPLAY CHARACTERISTICS
Design Thin bezel
Diagonal 85.6", 217.4cm
Panel IPS, Anti-Glare coated glass, matte finish, haze 25%
Native resolution 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m2
Static contrast 1200:1
Response time (GTG) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07G (8 Bits+FRC) (NTSC 72%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 1895 x 1066mm, 74.6 x 41.9"
Bezel width (sides, top, bottom) 21.5mm, 22mm, 22mm
Pixel pitch 0.493mm
Bezel colour and finish black, matte
INTERFACES / CONNECTORS / CONTROLS
Digital signal input HDMI x2 (2.0, max. 3840x2160 @60Hz, HDMI1: CEC/ ARC Support, HDMI2: CEC Support)
USB-C x1 (2.0, 15W PD, DP ALT 1.2, Data, Touch)
Monitor control input RS-232c x1 (2.5mm sub-mini jack)
RJ45 (LAN) x1 (10M/ 100M)
IR x1 (3.5mm stereo mini)
Audio output Mini jack x1 (3.5mm, Headphone Connector)
Speakers 2 x 16W
Monitor control output RS-232c x1 (2.5mm sub-mini jack)
IR loop through x1 (3.5mm stereo mini)
HDCP HDMI: 1.4 & 2.2, USB-C: 2.2
USB ports x2 (2.0)
USB HUB x1
FEATURES
Integrated software Android 14, iiSignage2 (CMS), iiControl (DMS), iiShare, EShare, iiBrowser, MediaPlayer, TeamViewer, File manager, FailOver
WiFi yes (Built-in WiFi5, 2.4G/ 5G)
Hardware Soc: MT9679, CPU: Quad Core A73*4, GPU: G52 MC1, RAM: 4GB, ROM: 32GB, NPU: 1.2T, UI: 4K @30Hz
Extra Wall mounting kit included (VESA 800x600mm)
Max. non-stop operating time 24/7
Anti image retention yes
Housing (bezel) metal
GENERAL
OSD languages EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons Remote Sensor, Power Indicator
User controls network (network status, WiFi, ethernet, hotspot), picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, over scan, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio out sync, speaker setting, audio reset), OSD settings (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD), General (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, screen reset), device (power on status, RS232 routing, IR control, physical button, power saving, panel saving, monitor information, other), channel (boot on source, rename input channel, auto source switching, signal lost detection, HDMI version), system (language, system update, setting reset, factory reset, Android setting), admin (menu lock, meeting room, HDMI CEC, screen Share, Miracast standby, log export)
Plug&Play DDC2B
MECHANICAL
Orientation landscape, portrait
Fanless design yes
VESA mounting 800 x 600mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50.000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables power (1.8m), HDMI (1.8m), RS-232c (1.8m)
Guides quick start guide, safety guide
Other Wall mount bracket (800x600), PC Slot Bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes
Remote control yes (batteries included)
POWER MANAGEMENT
Energy Star 8.0 (POn at 230V) 132.62W
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 277W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, EPEAT, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) G
REACH SVHC above 0.1%: Lead
DIMENSIONS / WEIGHT
Product dimensions W x H x D 1937.8 x 1108.8 x 79.6mm
Box dimensions W x H x D 2095 x 1215 x 225mm
Weight (without box) 47.9kg
Weight (with box) 62.2kg
EAN code 4948570125357
